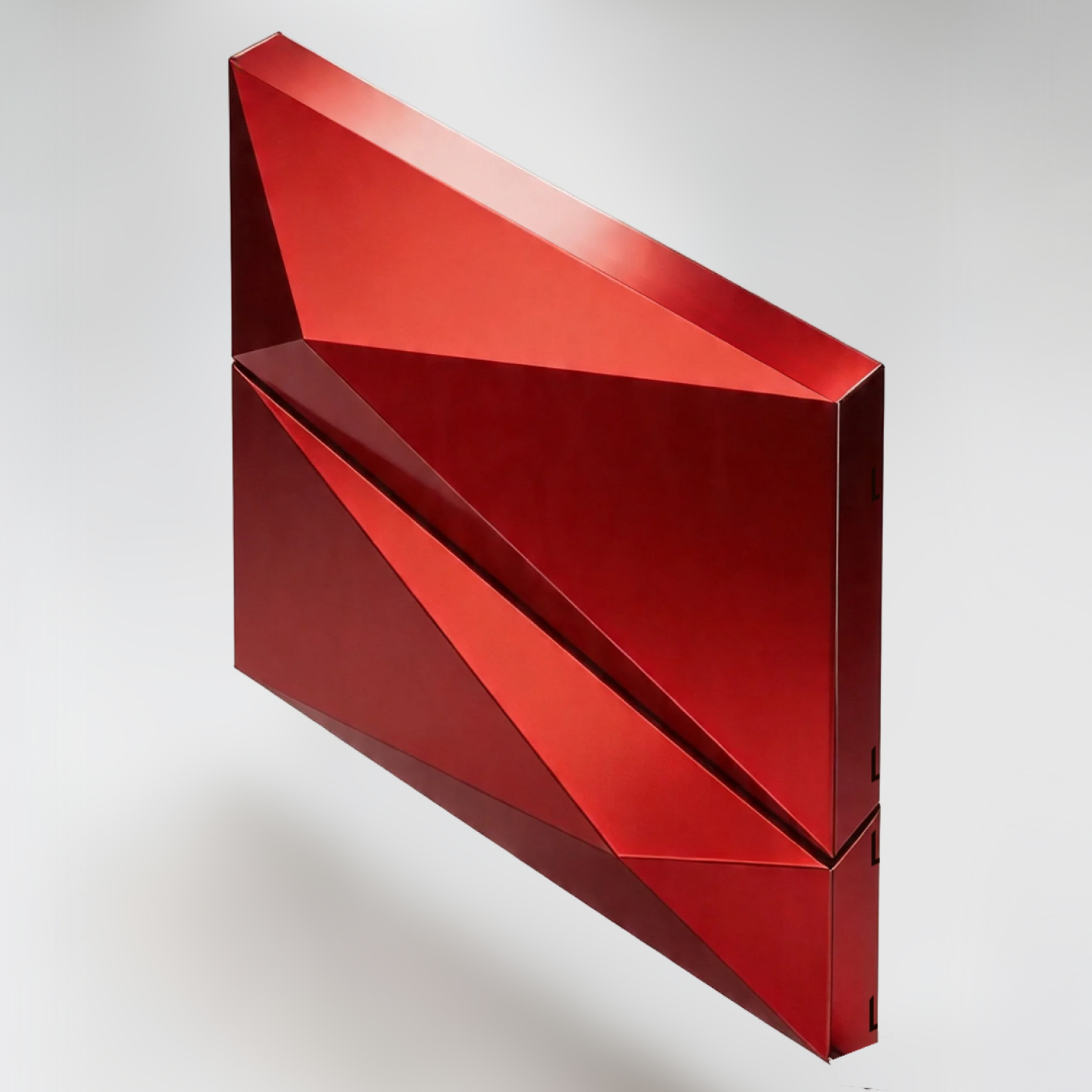

Facade 3D panels S.Panels 3D
Unlike ventilated facades with linear relief (corrugated) or embossed surfaces, 3D panels feature pronounced spatial geometry: these can be pyramids, hemispheres, cubes, trapezoids or custom-designed shapes that create play of deep light and shadow on the facade. In essence, this is "sculptural" cladding that transforms a wall into an art object.
Metal thickness: 1.0–2.0 mm (selected depending on drawing depth and panel size to prevent rupture during forming).
Dimensions: depend on shape complexity and forming equipment capabilities (typically not exceeding 1500×3000 mm for deep shapes, custom sizes available upon request).
• Premium business centres and offices: creating status-focused, memorable facades in business districts.
• Shopping and entertainment centres and boutiques: attracting attention and creating unique visual environment.
• Accent zones: entrance portals, bay windows, ventilated facades of residential complex ground floors.
• Accent walls: in restaurants, showrooms, private interiors in hi-tech, loft or art deco styles.
What are facade 3D panels
Facade 3D panels are exterior cladding elements with a textured surface. Unlike flat sheets, they have protruding or recessed areas that form a geometric or abstract pattern. Thanks to this, the facade does not look monotonous: in daylight, some surfaces are illuminated while others remain in shadow, and the picture constantly changes.
How volumetric panels are produced
Several technologies exist for manufacturing relief facade elements. The method choice depends on volume, pattern complexity and project budget.
-
CNC machining. An image of specified depth is cut from a flat aluminium or steel sheet. Suitable for unique architectural solutions and small batches. High precision, but higher cost than mass stamping.
-
Stamping. For serial panels, a press mold is made that imparts the required relief to the sheet in one pass. Cheaper than machining, but requires large orders.
-
Assembled structures. Individual flat elements are welded or riveted into a volumetric composition (honeycomb, pyramids, boxes). The most expressive but also the most expensive method.
Why volumetric panels are better than flat ones
-
Play of light and shadow. The facade never looks the same. Morning, noon and evening—the building is perceived differently.
-
Hiding defects. A textured surface masks inevitable installation unevenness, fastening marks and minor scratches.
-
Additional rigidity. A volumetric pattern often increases panel strength, allowing thinner metal to be used without losing stability.
-
High wear resistance. Scratches and scuffs on relief are far less noticeable than on a smooth surface.
Materials for facade 3D panels
Material selection affects weight, durability, price and appearance of cladding.
| Material | Weight | Corrosion resistance | Price | Appearance | Recommendation |
|---|---|---|---|---|---|
| Galvanised steel + polyester | Heavy | High | Low | Any RAL color | For budget projects: warehouses, garages, pavilions |
| Galvanised steel + PVDF | Heavy | High | Medium | Any RAL color, resistant to fading | For house facades, offices, shopping centres |
| Aluminium (pre-painted) | Light | Very high | High | Silver or colored | For high-rise buildings, seaside objects, premium facades |
| Aluminium (anodised) | Light | Very high | Very high | Silver, bronze, gold, black | For expensive projects where metallic finish is important |
Tip: for a private house, PVDF-coated steel (30–50 years service life) or aluminium (40–60 years) are most often chosen. Aluminium is more expensive but lighter and does not rust even when scratched.
Types of volumetric patterns and their application
Geometric patterns
Diamonds, squares, triangles, "honeycomb", concentric circles, "herringbone". The pattern can be regular or chaotic.
Application: business centre facades, exhibition halls, contemporary private houses. Creates an impression of technology and thoughtful design.
Natural textures
Imitation of tree bark, stone masonry, scales, sand dunes.
Application: country houses, spa complexes, eco-hotels, restaurants. Adds a sense of naturalness and warmth.
Abstract waves and flowing forms
Smooth lines of varying height, reminiscent of water ripples or wind movement.
Application: airports, railway stations, concert halls, cinemas, museums. Associated with dynamics and modernity.
Individual patterns
Logos, abstract patterns for company branding or architect's original sketches.
Application: headquarters, corporate buildings, boutiques of renowned brands.
Sizes and technical parameters
To find out the cost and sizes of facade 3D panels for exterior finishing of a house per m² in Moscow, several parameters must be considered.
Aluminium panel parameters
-
Sheet thickness: 1.5–6 mm (2–4 mm optimal for facades).
-
Maximum size before machining: 2000×4000 mm (standard), up to 3000×6000 mm upon request.
-
Relief depth: 2–15 mm (deeper risks material weakening).
-
Minimum web thickness: from 3 mm.
Steel panel parameters
-
Sheet thickness: 0.7–2.0 mm.
-
Maximum size: up to 1250×6000 mm (depends on equipment).
-
Relief depth (stamping): up to 8 mm.
Fixing types
-
Exposed (visible). Panels are fixed with self-tapping screws or rivets. Cheaper, but fasteners remain visible.
-
Concealed (clip fixing). Special profiles are installed on the panel reverse side, which hook onto framework guides. Fasteners are hidden, facade looks monolithic.
Cost and sizes of facade 3D panels for exterior finishing of a house per m² in Moscow
Approximate prices (order from 200 m², aluminium 2 mm, PVDF coating, average complexity pattern):
| Parameter | Value | Price impact |
|---|---|---|
| Simple geometric pattern (diamonds, squares, 50–100 mm spacing) | from USD 43/m² | Base price |
| Average complexity pattern (honeycomb, waves) | from USD 55/m² | + 30% |
| Complex pattern (wood imitation, scales, 20–30 mm spacing) | from USD 80/m² | + 80% |
| Exclusive pattern (per customer sketch) | from USD 110/m² | negotiable |
| Steel (galvanised, PVDF, average complexity pattern) | from USD 30/m² | 30–40% cheaper than aluminium |
Prices are approximate. Exact cost is calculated based on current metal rates, pattern complexity, coating type and order volume.
Additional options:
-
Increased sheet thickness (3–4 mm) - + 30–50%.
-
Aluminium anodising (silver, bronze) - + 50–100%.
-
Concealed fixing (clips) - + USD 6–12/m².
-
Urgent order (less than 4 weeks) - 20–30% surcharge.
For large projects (from 1000 m²) discounts up to 10–15% are possible.
Why choose Cladding Solutions
If you've decided to buy facade 3D panels, working with us offers several advantages.
In-house production
We machine, stamp and coat panels ourselves, guaranteeing quality and fair prices without middleman markups.
Custom drawings
You send a sketch, drawing or 3D model - we manufacture panels with 0.5 mm accuracy. We realize any designer's ideas.
Any sizes
We are not limited to standard sheets. We manufacture panels up to 1500 mm wide and 4000 mm long (standard), up to 6000 mm upon request.
Wide coating selection
Polyester, PVDF, anodising. For volumetric panels, anodised surfaces with metallic finish look particularly striking.
Delivery throughout Russia
We ship products to any region of Russia through trusted transport companies.
Frequently asked questions
1. How do volumetric panels differ from flat ones with textured film overlay?
Volumetric panels have real relief that you can feel by touch. It creates genuine play of light and shadow that changes depending on viewing angle. A flat panel with film only simulates volume and does not provide the same visual effect.
2. What material is best for a private house?
Optimal choice is galvanised steel with PVDF coating (budget-friendly, 30–50 years service life, any color) or aluminium with PVDF coating (more expensive but lighter and rust-free). For seaside houses - aluminium only.
3. How to maintain a volumetric facade?
Maintenance is minimal. Rain washes away dust. For heavy soiling—soft cloth, water and neutral soap. Do not use abrasives, acids or high-pressure washers—they can damage the relief or coating.
4. What is the service life of PVDF-coated panels?
Under normal conditions (urban environment) - 25–40 years. PVDF is resistant to ultraviolet, fading and industrial emissions. Anodised panels last 40–60 years.
5. Can volumetric panels be used on balconies or loggias?
Yes. Volumetric panels are often used for balcony and loggia screens. They are light (especially aluminium), require no complex fixing and look great from any angle.
Ordinary building into architectural landmark
Facade 3D panels are material for those who want to stand out. They transform an ordinary building into an architectural landmark, creating unique play of light and shadow. Thanks to aluminium's lightness and PVDF coating's durability, the facade will maintain its appearance for decades.
If you want to buy facade 3D panels from a manufacturer, contact Cladding Solutions. We will manufacture panels according to your drawings. To find out the cost and sizes of facade 3D panels for exterior finishing of a house per m² in Moscow, contact our specialists. Delivery throughout Russia. Make your facade a work of art
