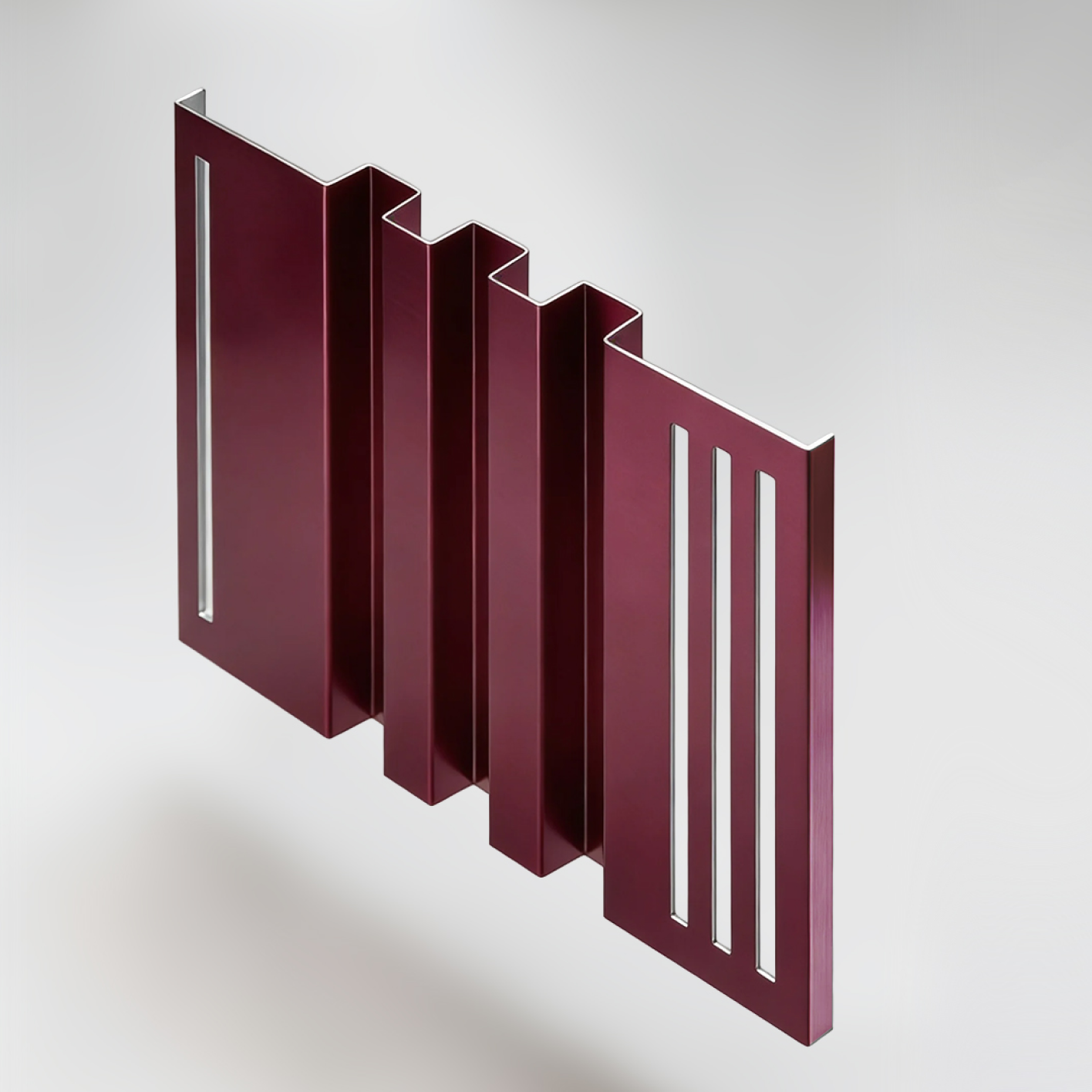

Facade corrugated panels S.Panels CORRUGATED
Unlike flat equivalents, these panels feature a "working" surface geometry. They combine the lightness of aluminium with high load-bearing capacity provided by stiffening ribs formed by the corrugations. The panels are manufactured with a polymer coating applied to the metal before the forming stage, ensuring uniform color throughout the full depth of the relief.
Metal thickness: aluminium from 1.2 mm to 2.0 mm, depending on the required rigidity and wind zone of the construction area.
*Execution in galvanised steel (Z275) is available on request.
Standard sizes: corrugation pitch from 30×30 to 150×150 mm
• Renovation of old buildings (including industrial) to give them a modern "loft" appearance.
• Finishing of ground floors and technical zones where resistance to abrasion and soiling is important.
• Finishing of entrance groups and lift shafts on the building exterior.
• Creating accent zones in hi-tech and minimalism styles.
What are facade corrugated panels and why are they popular
Facade corrugated panels are metal sheets with longitudinal corrugations that give the material additional rigidity. They are used for wall cladding (ventilated facades) and roofing. The corrugation can be trapezoidal, wavy or sinusoidal. Wave height ranges from 8 to 114 mm depending on the application.
Main advantages of corrugated panels
-
High rigidity. Thanks to the corrugation, the panel does not deflect even with large area and thin metal.
-
Lightness. Despite rigidity, panels are lightweight, reducing load on load-bearing structures.
-
Fast installation. Large panels cover large areas without numerous joints.
-
Durability. Galvanised steel or aluminium with polymer coating lasts 30–50 years.
-
Aesthetics. Clear corrugation lines give the facade a modern, dynamic appearance.
-
Cost-effectiveness. Corrugated panels are significantly cheaper than facade cassettes and composite materials.
Types of corrugated panels and where they are used
For ventilated facades
Panels are mounted on a substructure with an air cavity. The corrugation can be positioned vertically, horizontally or diagonally.
Suitable for: office centres, shopping complexes, industrial buildings, garages, warehouses, private homes.
Recommended corrugation height: 8–20 mm (decorative) or 35–57 mm (load-bearing).
For roofing
Corrugated roofing panels have higher corrugations (35 to 114 mm) for water and snow drainage. Used for both pitched roofs and arched coverings.
Suitable for: hangars, production facilities, agricultural buildings, private homes.
For wall enclosures (non-residential buildings)
Vertical or horizontal installation with sparse framing. A cost-effective option for quick-construction buildings.
Suitable for: warehouses, car washes, workshops.
Wide selection of colors and sizes
One of the main advantages of "Cladding Solutions" products is a wide selection of colors and sizes.
Colors
All RAL catalog colors are available (over 200 shades):
-
Classic: white (RAL 9003, 9010), grey (RAL 7004, 7042), black (RAL 9005).
-
Bright: red (RAL 3000), blue (RAL 5005), green (RAL 6005).
-
Metallic: silver, copper, bronze, gold.
-
Textures: wood, stone, leather (limited series).
Sizes
| Parameter | Values |
|---|---|
| Metal thickness | 0.4–1.5 mm |
| Panel width (working) | 600–1250 mm (depends on profile) |
| Panel length | up to 13 m (at customer's request) |
| Corrugation height | 8–114 mm |
A wide selection of colors and sizes allows you to select material for any architectural project - from a small cottage to a huge logistics centre.
Manufacturing materials
| Material | Service life | Weight | Price | Recommendation |
|---|---|---|---|---|
| Galvanised steel + polyester | 20–30 years | Heavy | Low | For temporary buildings, garages |
| Galvanised steel + PVDF | 30–50 years | Heavy | Medium | For facades and roofing in any climate |
| Aluminium (pre-painted) | 40–60 years | Light | High | For prestigious facades, marine regions |
| Stainless steel | 50–80 years | Heavy | Very high | For aggressive environments (chemical plants, seaports) |
For most projects, the optimal option is: galvanised steel with PVDF coating. It combines an affordable price, large color selection and a service life of 30–50 years.
Prices for facade corrugated panels from the manufacturer for external cladding of buildings per m²
Approximate prices for facade corrugated panels from the manufacturer for external cladding of buildings per m² (order from 500 m², steel thickness 0.5 mm, polyester coating):
| Corrugation height | Working width | Price per m² (without installation) |
|---|---|---|
| 8 mm (decorative) | 1000 mm | from 550 ₽ |
| 20 mm (facade) | 1000 mm | from 580 ₽ |
| 35 mm (universal) | 800 mm | from 620 ₽ |
| 57 mm (roofing) | 750 mm | from 680 ₽ |
| 75 mm (load-bearing) | 750 mm | from 750 ₽ |
Prices are approximate. Exact cost is calculated based on current metal rate, thickness, coating type and order volume.
Additional options:
-
PVDF coating - + 30–50% to price.
-
Aluminium - 2–3 times more expensive than steel.
-
Perforation (for acoustics or ventilation) - from 200 ₽/m².
-
Urgent order - surcharge 15–20%.
For large projects (from 2000 m²) discounts up to 10–15% are possible.
Why you should buy corrugated panels from the manufacturer
If you have decided to buy facade corrugated panels for ventilated facades and roofing, working directly with the manufacturer provides several important advantages.
Manufacturer prices
No distributor or hardware store markups. You pay only for metal, processing and delivery.
Wide selection of colors and sizes
You are not limited by standard stock inventory. You can order non-standard width, length and any RAL color.
Quality control
The manufacturer is responsible for steel thickness, galvanising uniformity, polymer coating quality and profile geometry precision.
Delivery throughout Russia
We ship products to any region of Russia via trusted transportation companies. Delivery to a terminal in Moscow is often free.
Technical support
We will advise you on selecting the profile, metal thickness and coating type for your loads and climate zone.
Frequently asked questions
1. Which panels are best for a ventilated facade of a private house?
We recommend steel with PVDF coating, corrugation height 8–20 mm, metal thickness 0.5–0.7 mm. Color - to your taste, but light shades are less prone to fading and generate less heat in the sun.
2. What is the difference between roofing panels and facade panels?
Roofing panels have higher corrugations (57–114 mm) which ensure water and snow drainage. Facade panels have lower corrugations (8–35 mm) as the main task here is rigidity and aesthetics.
3. Can corrugated panels be mounted horizontally?
Yes, horizontal installation is used for both facades ("board" effect) and wall enclosures. But note: for horizontal laying you need a more frequent framing as the load is distributed differently.
4. How to care for a facade made of corrugated panels?
Maintenance is minimal. Rain washes away dust. For heavy soiling - soft cloth, water and neutral detergent. Do not use abrasives, acids or metal brushes.
5. What is the service life of panels made of galvanised steel with polyester coating?
Polyester (PE) lasts 10–20 years depending on region. For facades and roofing we recommend PVDF (PVDF) - 30–50 years. The price difference is justified by durability.
Cost-effective, reliable solution for any facility
Facade corrugated panels for ventilated facades and roofing are a cost-effective, reliable and aesthetically pleasing solution for any facility: from private homes to industrial complexes. A wide selection of colors and sizes allows you to implement any design project. Products from the manufacturer guarantee quality and fair prices for facade corrugated panels from the manufacturer for external cladding of buildings per m². Delivery throughout Russia makes the material accessible to customers from any region.
If you want to buy facade corrugated panels for ventilated facades and roofing, contact "Cladding Solutions". We will help you select the optimal profile, color and thickness for your project. Make your facade modern, reliable and beautiful
