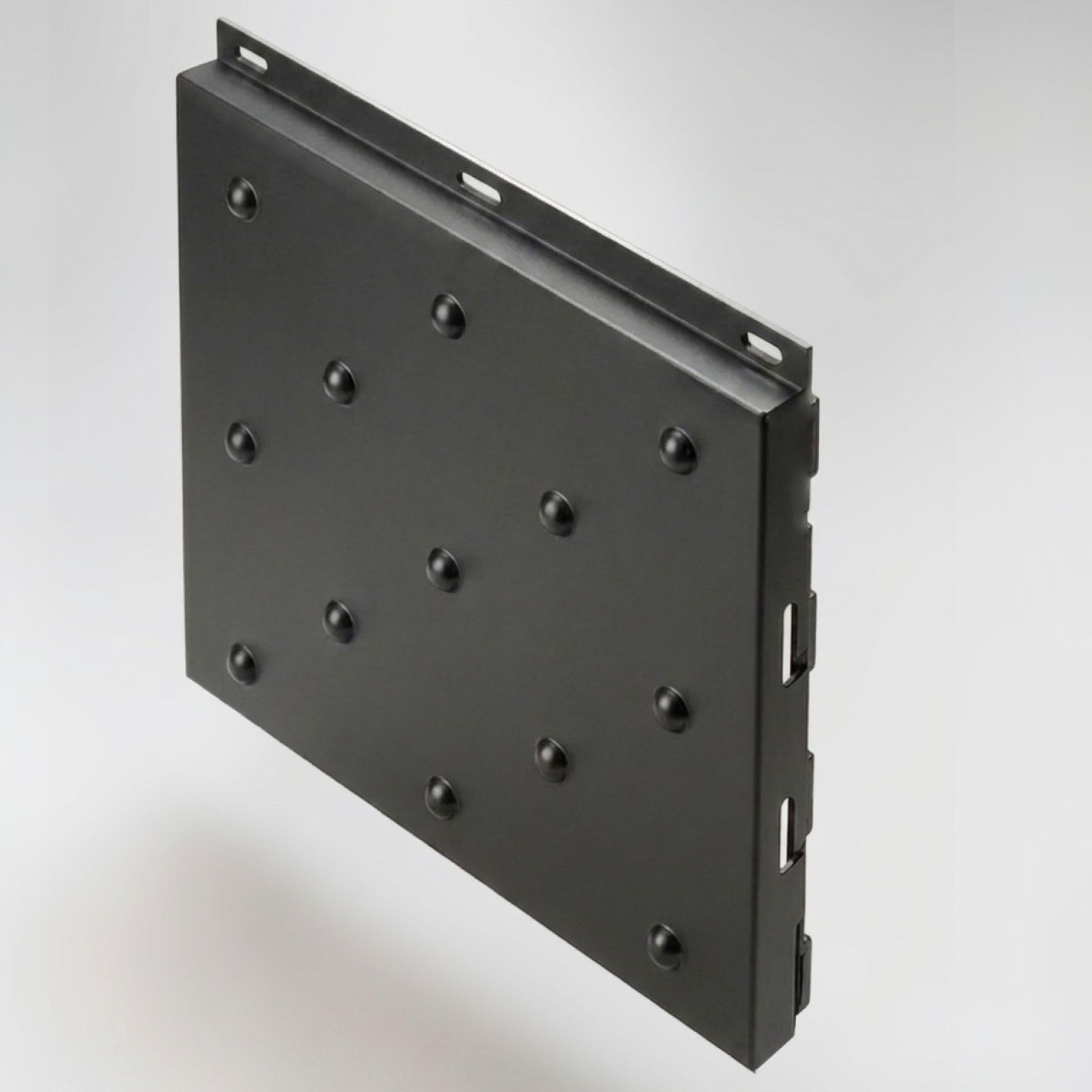

Facade panels with embossed pattern S.Panels STYLE
Metal thickness: 0.7–2.0 mm
Custom sizes per project – panel joints are designed to avoid disrupting the pattern composition.
• Cultural and public buildings: facades of theatres, museums, concert halls requiring decorative expressiveness.
• Private architecture: creation of unique homes in contemporary style with bespoke facade solutions.
• Reception and meeting areas: creation of memorable corporate interiors.
• Decorative finishing of lift halls and staircases.
What are aluminium facade panels with embossed pattern
Aluminium facade panels with embossed pattern are sheets or cassettes made of aluminium, with a relief pattern applied to the surface using milling or stamping. Unlike flat panels, embossed panels have protruding or recessed elements that create interplay of light and shadow. The pattern can be geometric (diamonds, squares, honeycombs, waves), abstract or imitate natural materials (wood bark, stone masonry, scales).
How embossed panels are manufactured
The technology depends on pattern complexity and production volume:
-
CNC milling (3D milling). The aluminium sheet is processed on a CNC machine, where a rotating cutter removes material to a specified depth (2–15 mm). The method is suitable for unique projects and small batches.
-
Stamping. For mass production, a die is manufactured that imparts the required relief to the sheet in a single stroke. Cheaper than milling, but requires larger order volumes.
-
Bending and welding. The volume structure is assembled from individual flat elements (e.g. "honeycombs" or "pyramids"). The most labour-intensive, but also the most expressive method.
Key advantages of embossed panels
-
Unique appearance. No other material provides such interplay of light and shadow. The facade "comes alive" and attracts attention.
-
Concealing defects. The textured surface masks minor installation irregularities, fastening marks and inevitable scratches.
-
Strength. An embossed pattern often increases panel rigidity, allowing the use of thinner metal without loss of stability.
-
Fade resistance. PVDF-coated aluminium retains its colour for 25–40 years. Bronze and gold tones can be achieved through anodising.
Types of embossed patterns and their applications
Geometric abstractions
Diamonds, squares, hexagons, "honeycombs", concentric circles. The pattern can be regular (repeating) or random.
Application: facades of business centres, exhibition halls, museums, shopping centres. Creates an impression of modern, high-tech architecture.
Waves and flowing forms
Smooth lines reminiscent of water surface, sand dunes or wind.
Application: airports, railway stations, concert halls, cinemas. Associated with movement and dynamism.
Imitation of natural materials
"Oak bark", "stone masonry", "scales", "honeycombs", "leather".
Application: country houses, spa complexes, eco-hotels, restaurants. Creates a sense of naturalness and cosiness.
Branded patterns
Logos, company names, abstract patterns for brand identity.
Application: headquarters, corporate buildings, shops of well-known brands.
Technical parameters and customisation options
To find out the cost and sizes of facade panels with embossed pattern from the manufacturer per m² in Moscow, several parameters must be considered.
Source material
-
Aluminium grade: 1050, 3003, 5052, 5754 (higher number means stronger alloy).
-
Sheet thickness: 1.5–6 mm. For facades, 2–4 mm is optimal.
-
Coating: polyester (PE), PVDF, anodising (silver, bronze, gold, black).
Panel sizes
-
Maximum sheet size before milling: 2000×4000 mm (standard), up to 3000×6000 mm on order (depends on machine).
-
Maximum relief depth: 2–15 mm (deeper risks puncturing).
-
Minimum web thickness: from 3 mm (depends on material and pattern).
Types of fixing
-
Exposed (visible). Panels are fastened with self-tapping screws or rivets. Cheaper, but fasteners are visible.
-
Concealed (on clips). Special profiles are fixed to the back of the panel, fasteners are not visible. More expensive, but more aesthetic.
Cost and sizes of facade panels with embossed pattern from the manufacturer per m² in Moscow
Indicative prices (order from 200 m², aluminium 2 mm, PVDF coating):
| Pattern type | Milling complexity | Price per m² (without installation) |
|---|---|---|
| Simple geometric (diamonds, squares, pitch 50–100 mm) | Low | from 3,500 ₽ |
| Medium complexity (honeycombs, waves, depth 5–8 mm) | Medium | from 4,500 ₽ |
| Complex (wood imitation, scales, fine pattern with 20–30 mm pitch) | High | from 6,500 ₽ |
| Exclusive (per customer sketch, logo, complex 3D model) | Very high | from 9,000 ₽ |
Prices are indicative. Exact cost is calculated based on current aluminium rate, pattern complexity, coating type and order volume.
Additional options affecting price:
-
Increased sheet thickness (3–4 mm) – +30–50%.
-
Anodising (silver, bronze) – +50–100%.
-
Concealed fixing (clips) – +500–1,000 ₽/m².
-
Urgent order (less than 4 weeks) – surcharge 20–30%.
For large projects (from 1,000 m²) discounts up to 10–15% are possible.
Why buy embossed panels from Cladding Solutions
If you have decided to buy aluminium facade panels with embossed pattern for cladding, working with us offers several advantages.
In-house production
We mill, paint and assemble panels ourselves, not resell them. This guarantees quality control and honest prices.
3D model-based work
You send us a drawing or 3D model – we manufacture panels with accuracy to 0.5 mm.
Any sizes
We are not limited to standard sheets. We manufacture panels up to 1,500 mm wide and 4,000 mm long (standard), up to 6,000 mm on order.
Wide range of coatings
Polyester, PVDF, anodising. Anodised panels have a metallic sheen and look particularly striking on embossed patterns.
Delivery throughout Russia
We ship products to any region of Russia through trusted transport companies.
Frequently asked questions
1. How do embossed panels differ from flat panels with film overlay?
Embossed panels have genuine relief that can be touched. It creates true interplay of light and shadow, changing depending on viewing angle. A flat panel with film creates only an optical illusion of volume.
2. What is the maximum panel size that can be manufactured?
The standard processing zone of a CNC machine is up to 2000×4000 mm. For orders from 100 m², milling on a machine with a 3000×6000 mm field is possible (check details). Larger panels are assembled from several elements with a neat seam.
3. How to maintain an embossed aluminium facade?
Maintenance is minimal. Rain washes away dust. For heavy soiling – soft cloth, water and neutral soap. Do not use abrasives, acids or metal brushes (will damage the relief).
4. What is the service life of panels with PVDF coating?
Under normal conditions (urban environment) – 25–40 years. PVDF is resistant to ultraviolet light, fading and industrial emissions. Anodised panels last 40–60 years, but their colour range is limited.
5. Can embossed panels be used in interiors?
Yes. They are used for accent wall finishing, foyers, reception areas, conference rooms. In interiors they look as striking as on facades and are not exposed to weather.
Transforms an ordinary building into an architectural landmark
Aluminium facade panels with embossed pattern are a material for those who want to stand out. They transform an ordinary building into an architectural landmark, creating a unique interplay of light and shadow. Thanks to the lightness of aluminium and PVDF coating durability, the facade will retain its appearance for decades.
If you want to buy aluminium facade panels with embossed pattern for cladding from a manufacturer, contact the company "Cladding Solutions". We will manufacture panels according to your drawings. To find out the cost and sizes of facade panels with embossed pattern from the manufacturer per m² in Moscow, contact our specialists. Delivery throughout Russia. Make your facade a work of art
