Standing seam S.Falz
Products are manufactured from aluminium alloys EN 3005, EN 3105, copper alloys — materials with optimal ductility for profiling and high corrosion resistance.
The key feature of the system is the connection of panels to each other using a double standing seam lock (standing or horizontal) directly on-site. Such a connection creates a monolithic coating without a single through-hole, which is the main difference from other types of cladding. The facing surface can be smooth, embossed, or have a decorative coating.
Metal thickness: from 0.4 mm to 1.0 mm (choice of thickness depends on roof type, purlin spacing, and snow load).
• Public and commercial building roofs — shopping centers, offices, sports facilities.
• Industrial buildings and warehouses — reliable protection of large areas.
• Architecturally complex roofs — domes, spires, bay windows, where high material ductility is required.
• Roof renovation — light weight of aluminium allows mounting new coating without reinforcing the rafter system.
• Finishing of vertical surfaces, gables, cornices.
• Creation of suspended facade systems with pronounced linear texture.
What is a standing seam system
A standing seam system is a method of joining metal sheets (panels) into a single hermetic surface without using through-holes. The connection is made by bending the edges of two adjacent sheets. The result is a lock that does not allow water to pass through and withstands high wind and snow loads.
Main elements of a standing seam system
-

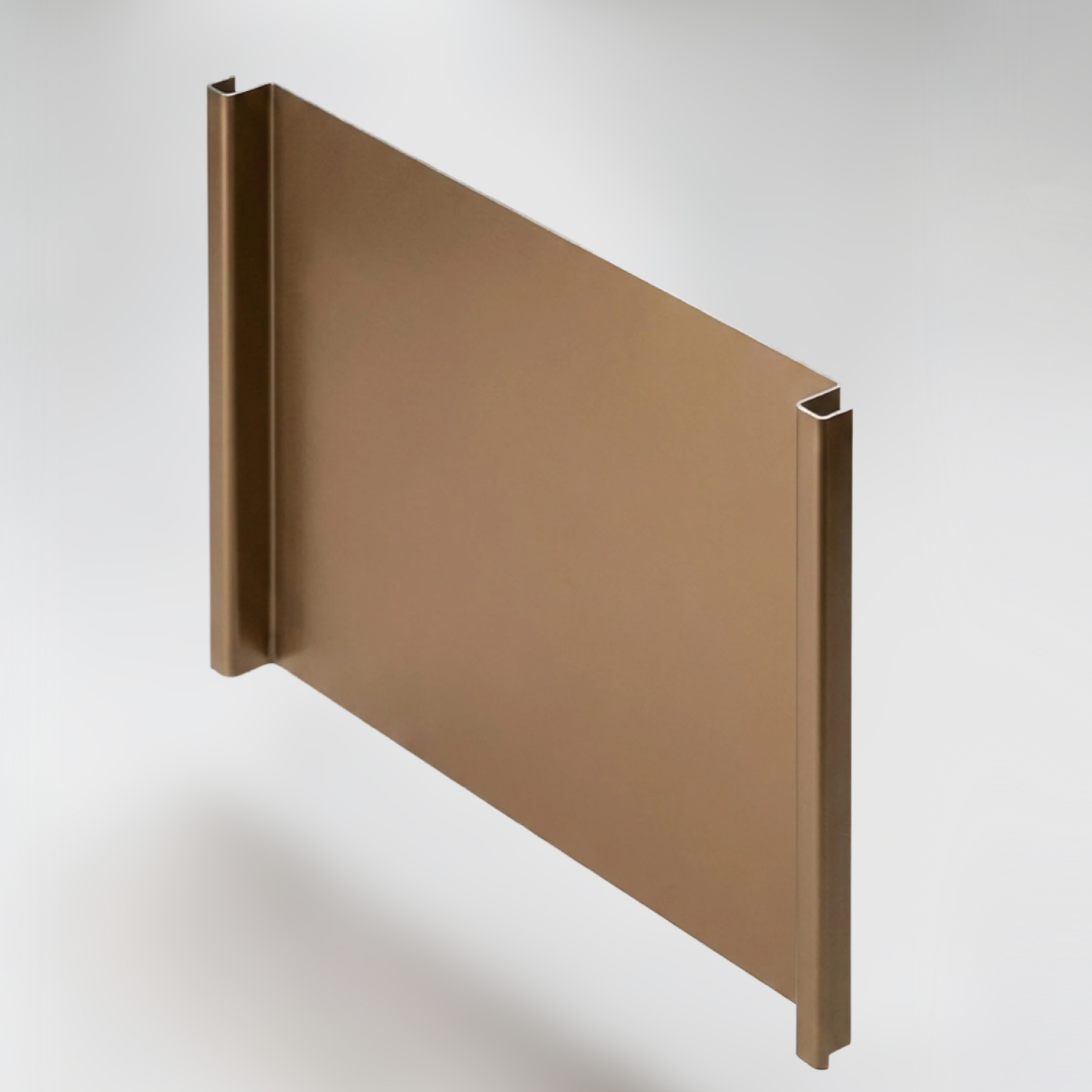

Panel - individual sheet (or coil blank) with prepared edges for seaming.
-
Seam lock - the point where two panels connect. Can be standing (protrudes above the plane) or horizontal (flush with the plane).
-
Fixing clip - special fastening that fixes the panel to the base (purlins) without piercing the metal. The clip is attached to the base, and the seam lock is placed over it.
-
Additional elements - ridges, valleys, wall connections, eave overhangs.
Advantages of standing seam system
-
Absolute hermeticity. Roof and facade have no through-holes — water cannot penetrate inside.
-
Durability. Service life of copper standing seam roofing is 80–100 years, aluminium is 50–70 years, steel with PVDF coating is 30–50 years.
-
Frost and heat resistance. Metal does not crack in frost, does not melt in the sun.
-
Aesthetics. Clear lines of standing seam give a building a modern, "European" appearance.
-
Repairability. A damaged panel can be replaced without dismantling the entire roof.
Types of standing seam systems
By lock type
| Seam type | Description | Application |
|---|---|---|
| Standing (single or double) | Lock protrudes above the roof plane. Double seam is more reliable than single | Pitched roofs, facades (vertical and horizontal) |
| Horizontal | Lock is flush with the roof plane | Panel connections along the slope length (in combination with standing seam) |
| Trapezoidal | Ridge has a trapezoidal shape. More rigid construction | Regions with high snow loads |
By material
| Material | Service life | Weight | Price | Aesthetics |
|---|---|---|---|---|
| Galvanised steel with polymer coating | 30–50 years | Heavy | Low | Any RAL color |
| Aluminium | 50–70 years | Light | Medium | Silver or colored |
| Copper | 80–100 years | Heavy | Very high | Rose-gold → patina |
| Zinc-titanium | 60–80 years | Medium | High | Gray, ages gracefully |
By fastening type
-
Standing seam on fixing clips. Most common option. Clip is fastened to purlins, seam lock is placed over it. Fastening is not visible.
-
Self-locking seam. Panels connect without special tools — by pressing. Cheaper, but less hermetic.
Where standing seam system is applied

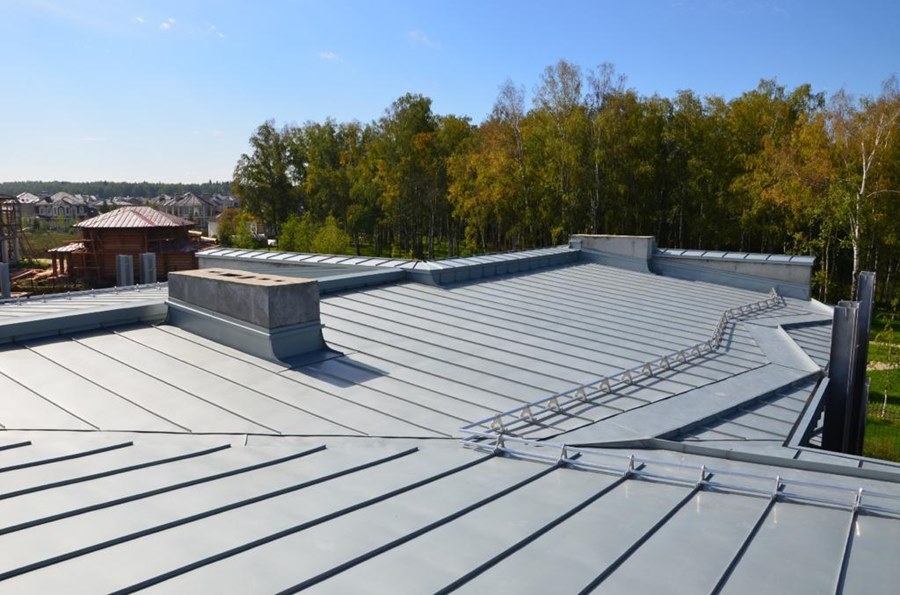

Roofing
Standing seam roofing is a classic for pitched roofs with a pitch of 7–10°. Especially popular for complex architectural forms: domes, spires, turrets, dormer windows.
Suitable for: private houses, temples, museums, industrial buildings.
Facades
Standing seam facades are vertical or horizontal panels with visible standing seams. Create a strict, modern rhythm.
Suitable for: office centers, shopping complexes, private houses.
Drainage systems and decorative elements
Standing seam panels are used to manufacture drainage pipes, gutters, eave overhangs, window frames.
Comparison with other types of roofing and facades
| Characteristic | Standing seam system | Metal tile | Composite panels (facade) |
|---|---|---|---|
| Hermeticity | Absolute (no through-holes) | Good (self-tapping screws with rubber washers) | High |
| Service life | 50–100 years (depending on metal) | 20–30 years | 30–50 years |
| Installation complexity | Medium (requires experience and special tools) | Low | Medium |
| Price | Higher than metal tile | Low | High |
| Aesthetics | Strict clear lines | Ceramic tile imitation | Monolithic or rhythmic |
Technical parameters and dimensions
To find out the cost and dimensions of standing seam for facade and roofing from aluminium for home finishing per m² in Moscow, several parameters must be considered.
Panel dimensions
| Parameter | Standard values | Custom order |
|---|---|---|
| Panel width (usable) | 500 mm, 600 mm, 800 mm | 300–1000 mm |
| Panel length | up to 12 m (from coil) | up to 20 m |
| Metal thickness | 0.5–0.8 mm (roofing), 1.0–1.5 mm (facade) | 0.5–2.0 mm |
Coating types for steel and aluminium
-
Polyester (PE). Budget option. Service life 10–20 years.
-
PVDF (PVDF). Mid-range price. Service life 25–40 years. Fade resistant.
-
Anodizing (aluminium only). High price. Service life 40–60 years. Metallic sheen.
Cost and dimensions of standing seam for facade and roofing from aluminium for home finishing per m² in Moscow
Approximate prices (order from 500 m², aluminium, thickness 0.7 mm for roofing or 1.5 mm for facade, double standing seam):
| Coating type | Price per m² (material + panel manufacturing) | Price per m² (with turnkey installation) |
|---|---|---|
| Aluminium (uncoated) | from 1,400 ₽ | from 2,600 ₽ |
| Aluminium + polyester (PE) | from 1,800 ₽ | from 3,000 ₽ |
| Aluminium + PVDF (PVDF) | from 2,200 ₽ | from 3,400 ₽ |
| Anodized aluminium (silver) | from 3,000 ₽ | from 4,200 ₽ |
Prices are approximate. Exact cost is calculated based on current metal price, coating type, panel width, and order volume.
Additional options:
-
Panel manufacturing from coil (length up to 20 m) — price comparable to sheet cutting.
-
Stainless steel or copper — 2–5 times more expensive than aluminium.
-
Complex additional elements (valleys, ridges with ventilation) — + 20–50% to price.
For large projects (from 2000 m²) discounts up to 10–15% are possible.
Why choose standing seam system from Cladding Solutions
If you decide to buy a standing seam system for facade, roofing and exterior finishing of buildings, working with us has several advantages.
Own production. We manufacture panels from coil ourselves, which allows us to make blanks of virtually any length (up to 20 m). This minimizes the number of transverse seams.
Any dimensions. We are not limited to standard sheets. We will make panels exactly to your measurements.
Wide material selection. Aluminium, steel, copper, zinc-titanium. Any coating — from polyester to anodizing.
Delivery throughout the RF. We ship products to any region of Russia through trusted transport companies.
Technical support. We help calculate purlin spacing, type of fixing clips, and installation sequence.
Frequently asked questions
1. What is the minimum roof pitch for standing seam system?
For standing seam — 7–10° (3–5° when using special sealants). For roofs with pitch less than 7°, solid substrate and double seam are recommended.
2. Can standing seam system be used for facade?
Yes. Facade standing seam panels are mounted vertically or horizontally on a substructure with air gap. Most often aluminium (light) or steel with PVDF coating is used.
3. What material is best for a private house?
Optimal are aluminium (light, rust-proof, 50–70 years service life) or galvanised steel with PVDF coating (30–50 years, cheaper). Copper — for elite projects where prestige is important.
4. How to maintain standing seam roofing?
Natural rain is sufficient. For heavy soiling — soft cloth, water, and neutral soap. Do not walk on the roof unnecessarily (leaves dents). Use special walkways for cleaning.
5. What is the service life of aluminium standing seam?
Under normal conditions (urban environment, not by the sea) — 50–70 years. PVDF coating retains color 25–40 years, anodizing — 40–60 years. The aluminium itself does not deteriorate; the appearance can be refreshed by repainting.
Time-tested technology
Standing seam system for facade, roofing and exterior finishing of buildings is a time-tested technology that ensures hermeticity, durability, and aesthetics. Modern materials (aluminium, steel with PVDF coating, copper) and equipment make it accessible for private houses, commercial and industrial buildings.
If you want to buy a standing seam system for facade, roofing and exterior finishing of buildings from the manufacturer, contact Cladding Solutions. To find out the cost and dimensions of standing seam for facade and roofing from aluminium for home finishing per m² in Moscow, contact our specialists. Delivery throughout Russia. Make your home reliable and stylish
